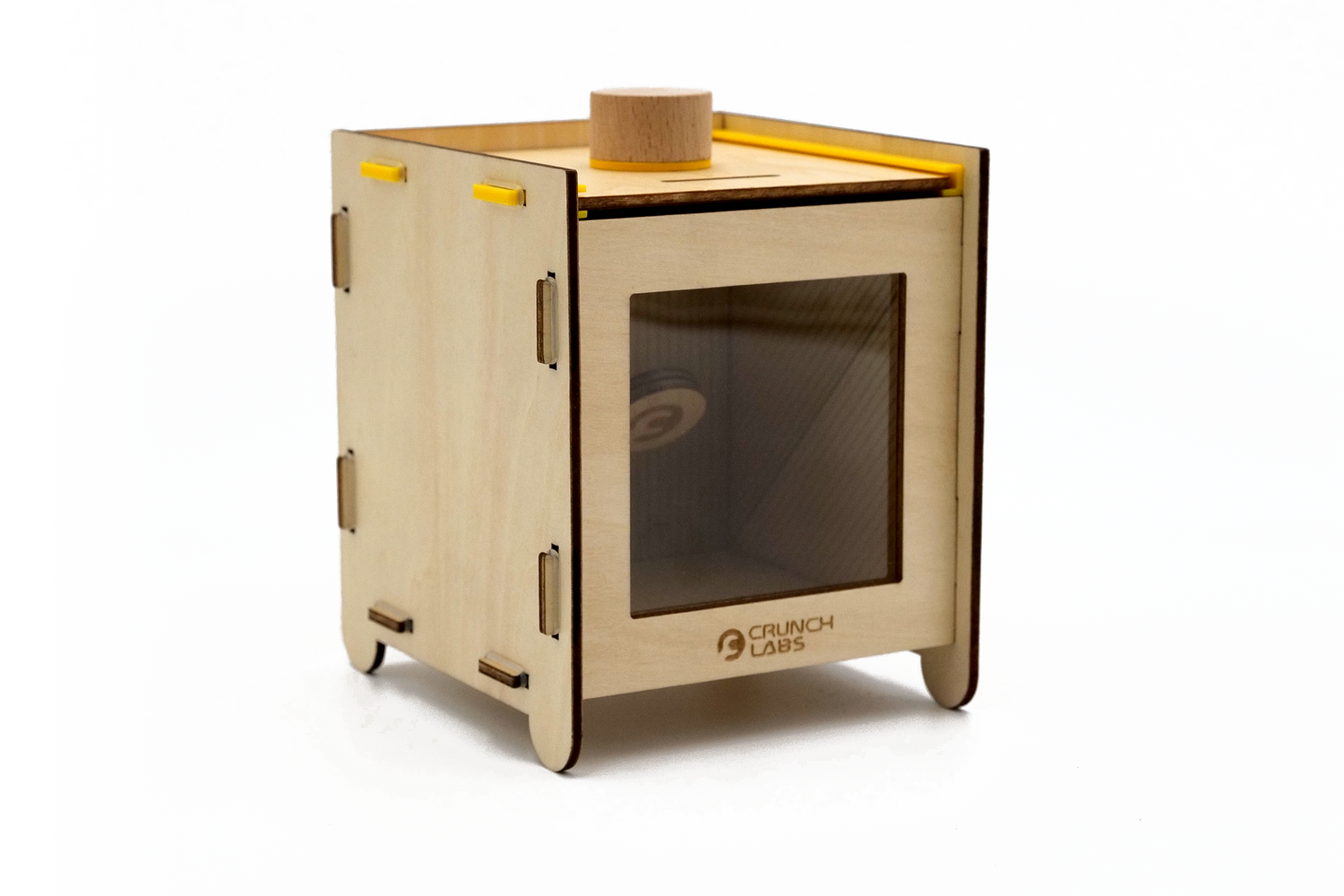

Mirror Bank (Assembled)

Box 7

Mirror Bank

Mirrors

Select a subscription and start your CrunchLabs journey of science and engineering education!

SEE WHAT'S INSIDE EACH MONTH

Box 1

Disc Launcher

Disc Launcher

STEM Principle: Flywheel

SEE MORE

Box 1

Disc Launcher

Flywheel

A flywheel is a mechanical device that stores rotational energy. Basically, it stores energy by spinning. Your Disc Launcher uses the rotational energy (spin) of the flywheel to launch its discs. When a disc touches the flywheel, the flywheel gives some of its stored energy to the disc.

Peek Inside Box 1
SEE LESS

Box 2

Coin Spinner

Coin Spinner

STEM Principle: Ratchet

SEE MORE

Box 2

Coin Spinner

Ratchet

A ratchet is a device that allows rotation in only one direction. Basically, it only turns one way. It uses special teeth to lock a wheel in place. For the Coin Spinner, when you pull the ratchet back, the teeth lock to store the energy of the rubber band until you release it with the trigger. Then, it transfers stored energy to the coin.

Peek Inside Box 2
SEE LESS

Box 3

Trip Wire

Trip Wire

STEM Principle: Momentum Transfer

SEE MORE

Box 3

Trip Wire

Momentum Transfer

Momentum transfer is motion passing between objects. Basically, one thing bumps into something else. When the Trip Wire is triggered, the kicker lever swings into the foam ball. The energy transfers from the kicker to the ball, just like kicking a soccer ball. Energy is never lost!

Peek Inside Box 3
SEE LESS

Box 4

Drawing Machine

Drawing Machine

STEM Principle: Linkages

SEE MORE

Box 4

Drawing Machine

Linkages

A linkage uses pivoting bars to guide a machine’s movement. Basically, linkages help things move. The Drawing Machine uses linkages to guide a pen in complex but predictable patterns. The arms are connected to wheels that spin at different speeds. The arms also pivot in difference places, changing where the pen goes.

Peek Inside Box 4
SEE LESS

Box 5

Domino Catapult

Domino Catapult

STEM Principle: Projectile Motion

SEE MORE

Box 5

Domino Catapult

Projectile Motion

Projectile motion is the curved path of a launched object. Basically, it’s the science of tossing stuff. Domino Catapults can launch balls to the same spot over & over due to projectile motion. The motion of a projectile is affected by the angle (trajectory), the force (velocity), and gravity. Keep those the same each time you launch to predict where the ball will land.

Peek Inside Box 5
SEE LESS

Box 6

Strobe Light

Strobe Light

STEM Principle: Light Refraction

SEE MORE

Box 6

Strobe Light

Light Refraction

Light reflection is light hitting an object and then bouncing off of it. Basically, it’s light changing directions. The squirrel animation is made by etching tiny scratches into clear acrylic. The light wants to pass through the acrylic, but when it hits the scratches, it gets reflected out the front. That’s why the squirrels appear to be glowing!

Peek Inside Box 6
SEE LESS

Box 7

Mirror Bank

Mirror Bank

STEM Principle: Mirrors

Currently Viewing

Box 7

Mirror Bank

Mirrors

Mirrors are smooth surfaces that reflect a clear image. Basically, it’s light changing directions. Your Mirror Bank uses the reflective surface of a mirror to create an illusion of an empty box. The box is only half empty, but because the mirror reflects the empty half perfectly, your eye is tricked into seeing one entirely empty box.

Peek Inside Box 7
SEE LESS

Box 8

Boomerang Car

Boomerang Car

STEM Principle: Worm Gear

SEE MORE

Box 8

Boomerang Car

Worm Gear

A worm drive is a gear that changes the axis of rotation 90°. Basically, it’s a gear that turns a corner. Worm drives are often used to change the orientation of gear. Notice that the Boomerang Car uses a worm drive to flip vertical rotation from the motor into horizontal rotation of the red & blue switch. As a result, the Boomerang Car’s motor, wheels, and switch all move as one.

Peek Inside Box 8
SEE LESS

Box 9

Duck Game

Duck Game

STEM Principle: Belts

SEE MORE

Box 9

Duck Game

Belts

A belt is a loop of material used to carry objects or transfer energy. Basically, belts move stuff along. The belt on your Duck Game carries the ducks in an endless loop. The rollers drive the belt forward, bringing the ducks along for the ride...

Peek Inside Box 9
SEE LESS

Box 10

Air Ball

Air Ball

STEM Principle: Coanda Effect

SEE MORE

Box 10

Air Ball

Coanda Effect

The Coanda Effect is the tendency of air to follow an object's curvature. Basically, air can wrap around things like a net. The Air Ball game takes advantage of this effect. As the ball enters the airstream, air “wraps” around the ball suspending it in a bubble of air pressure. That bubble of pressure acts like a magnet and keeps the ball centered in the stream.

Peek Inside Box 10
SEE LESS

Box 11

Airplane Launcher

Airplane Launcher

STEM Principle: Springs

SEE MORE

Box 11

Airplane Launcher

Springs

A spring stores mechanical energy through elastic deformation. Basically, springs store energy by stretching. The spring in your Airplane Launcher stores energy when you pull your string back and releases energy when you let it go. Your spring returns to its original shape after being stretched due to elastic deformation.

Peek Inside Box 11
SEE LESS

Box 12

Rocket Revolver

Rocket Revolver

STEM Principle: Compressed Air

SEE MORE

Box 12

Rocket Revolver

Compressed Air

Compressed air holds a greater pressure than the atmosphere. Basically, it’s tightly-packed air. The Rocket Revolver is powered by compressed air. When you stomp the pump, you're pressurizing the air inside. That air wants to escape back into the lower-pressure atmosphere. The only way for the air to escape back into the atmosphere is by shooting the rocket out of the way.

Peek Inside Box 12
SEE LESS
